Three Layer Dishwasher Tablet / Dishshwasher Block Making Machine With High Pressure

Furis Group Co Ltd
Contact Now
    Buy cheap Three Layer Dishwasher Tablet / Dishshwasher Block Making Machine With High Pressure from wholesalers

    Buy cheap Three Layer Dishwasher Tablet / Dishshwasher Block Making Machine With High Pressure from wholesalers
    • Buy cheap Three Layer Dishwasher Tablet / Dishshwasher Block Making Machine With High Pressure from wholesalers
    • Buy cheap Three Layer Dishwasher Tablet / Dishshwasher Block Making Machine With High Pressure from wholesalers
    • Buy cheap Three Layer Dishwasher Tablet / Dishshwasher Block Making Machine With High Pressure from wholesalers

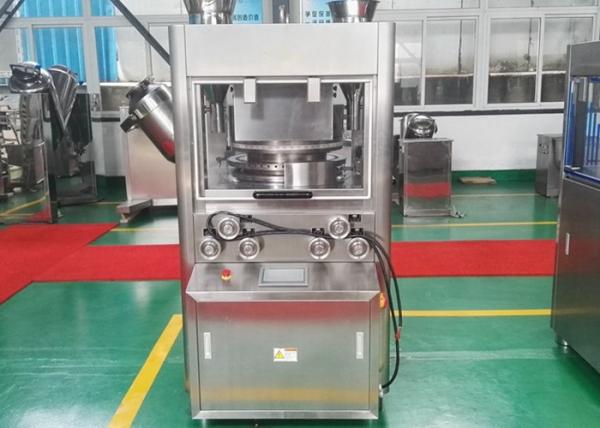

    Three Layer Dishwasher Tablet / Dishshwasher Block Making Machine With High Pressure

    Ask Lasest Price
    Brand Name : FRS
    Model Number : ZP-23
    Certification : CE
    Price : 30000-50000USD/SET
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 2 sets one month
    Delivery Time : 15-45 days
    • Product Details
    • Company Profile

    Three Layer Dishwasher Tablet / Dishshwasher Block Making Machine With High Pressure

    Three Layer Dishwasher Tablet / Dishwasher Block Making Machine With High Pressure


    Applying:


    This machine is used for making different kind shape of two layers,three layers tablet,bill,candy,salt block,dishwasher block etc.

    The machine is applicable for pressing single-layer, double-layer and three-layer tablets. In ordering the machine, the customer should state clearly in the contract that single-layer, double-layer or three-layer tablets


    Features:


    The machine designed for full closed structure,it has the advantage of running stable,high efficiency,lower energy consumption etc.
    The machine rack adopt the stainless steel,the surface be treated by polishing,meet the GMP standard.
    The machine adopt the transparent plastic window,can see the tablet producing clearly,the window can be opened for clearing and maintenance. Adopt the frequency control and with the hydraulic system,the pressure is very big,the pressure can be adjust.
    Has the over loading protect,make sure the machine safe
    The transfer system with electromagnetic clutch ,it is independent with the pressing chamber,can prevent pollute the product,the electromagnetic clutch also can prevent the machine over load and make adjust the machine more easy.
    All punching mold and other wearing part can be universal with other model press machine

    With PLC and touch screen operation,the machine operation is very easy.


    Parameter:


    ItemDescriptionUnitQuantity
    1Number of punches and diesSet23
    2Max. compression pressureKN150
    3Max. tablet diametermm56
    5Diameter of upper and lower punchesmm58
    6Length of upper punchmm229
    7Length of lower punchmm219
    8Diameter of diemm75
    9Height of diemm55
    10Working diameter of turretmm640
    11Rotation speed of turretr/min10~18
    12Max. tablet outputThree-layer(Each layer)

    Tab/h

    24840
    13Power of main motorKW7.5
    14Height of main machineWith hoppermm2140
    Without hoppermm2000
    15Floor space of the main machinemm1500 x 1800
    17Net weight of the main machinekg4100


    Competitive advantage:


    1. We have several technicians who gets passport ready to travel all over world to offer service to you.
    2. We have 24hours hot line for Technical Support.
    3. We get 18hours internet line for technical support.
    4. Video camera in workshop to help you adjust and solve machine problem in working situation.
    5. We have Technical Support in below Country:
    USA (Distributor ),Italy distributor,Britishi(Distributor),India(Distributor)


    Comany info:


    We are mainly produce pharma machine,pharma packing machine,our product includes automatic capsule filling machine,tablet press machine,powder mixing machine,powder grinding machine,tablet capsule counting machine,blister packing machine,cartoning machine,labeling machine,bottle filling and capping machine,etc
